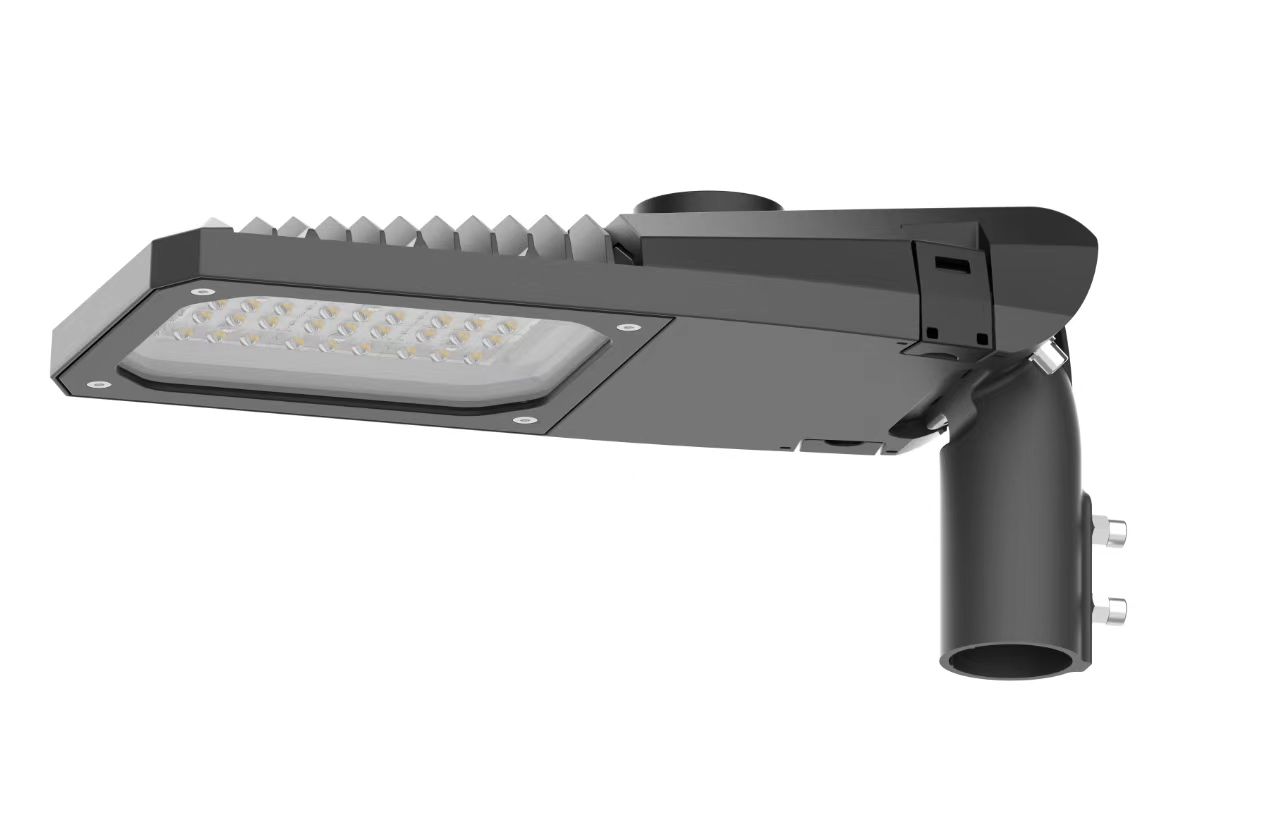

Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.
The LED Street light housing manufacture from high pressure die-casting aluminum casing
| Model Code | Housing Size mm | Match Power | Lamp Post （mm) | Weight （Kg) | Accessories |
| EK-LD13A | 492*183*97 | 30-50W | 60 | 2.4kg | Aluminum body tempered glass, Waterproof Rubber Ring，304 s/s screws, |
| EK-LD13B | 541*200*113 | 60-80W | 60 | 2.8kg | |
| EK-LD13C | 602*243*121 | 90-120W | 60 | 3.5kg | |
| EK-LD13D | 652*263*121 | 120-150W | 60 | 4.0kg | |
| EK-LD13E | 722*314*121 | 150-200W | 60 | 5.5kg | |
| EK-LD13F | 823*314*121 | 240-300W | 60 | 6.1kg | |
| Legend: Std = IP66 IK08 | |||||
| Housing Material ：Die-cast Aluminum + Armored Glass | |||||
| Work temperature -35℃~50℃ 20%~90% H.R | |||||
Product Features
- Aluminum body is made of ADC12 aluminum Die-casting, the surface treated by Spray-painting to Prevent Corrosion and Color Persistence.
- Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- Power supplier box to keep the lamp complete and unified.
- Ventilation design to dust prevention & prevent stagnant water to achieve the light long-life time.
high-performance street lighting available in three sizes.
The LED Street lighting is manufactured from high pressure die-casting aluminum.
Led street light housing, Aluminum body street light
ShenZhen EKI Lighting Industrial Co.,Ltd. is the manufacturer of Aluminum Die-Casting LED Light Housing With the various of our own developed design and technologies.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.
Features of LED Street light housing:
- Highly durability
- High strength
- Latest designs available
