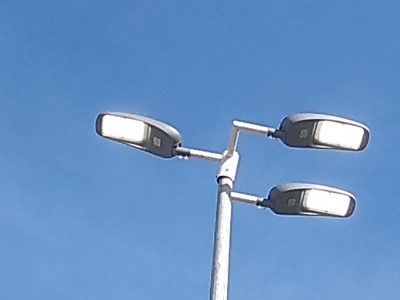

Die Casting Aluminum Ip66 Led Street Light Fixture Without Driver

Model Number : EK-LD05
Product Name: Die Cast Aluminum Light Empty Body
Recommend the Watts: : 30w 40w 50w 80w 120w 150w 180w 200w 240w
Waterproof Index : IP66 IP67
Earthquake-proof Index : IK08 IK09 IK10
Working Temperature(℃):-20-60
Surface Color : Dark Gray, Light Gray, Black, Customized etc
Contain Accessories : Aluminum Body, Toughened Glass, Handle,Assembly Screws, Rubber Ring


10 years warranty of die casting aluminum housing
Power size choose 40w 80w 120w 150w 200w
IP66 waterproof ADC12 Aluminum case
IK09 Anti-fall test certificates
304 stainless steel screws prolong complete streetlight life time
500hours salt spray testing certificates , no problem use on seaside road,
High heat dissipation conductive
Lamp post lamp inner diameter 50mm/60mm
Corrosion resistant polyester powder paint min,2.0mil thickness
Standard colors : Dark gray, Light gray & Black or any special can be customized
Sandy gray powder painting process to make perfect surface treatment

Specification and Dimension

Item No.Casing Size(mm)Suggest PowerAccessories
EK-LD05(mini)507*210*143 (3kg)20w-40w
(lamp post 50mm)
Aluminum Casing, tempered glass,
Rubber ring, screws.
EK-LD05(S)616*259*186 (4kg)60w-40w
(lamp post 60mm)
(lamp post 60mm)
EK-LD05(L)860*370*186 (11.5kg)160w-200w
(lamp post 60mm)

Dimensional Drawing

street light drawing size
