20w integrated all in one led solar garden light
Lumen：2700LM（20W chips3030）
Solar Panel: 30W/18V High Efficiency
LifePO4 Battery：153.6WH/12.8V
LED Lamp：3PCS LED Lamp/Each 24PCS LED Chips
Waterproof：IP65
Working temp：-25℃~65℃ 7.
Material：Aluminium alloy
Charging time：9-10by bright sunshine
Install Pole diameter70-75mm
Mounting Height：3-4M（distance10-14M）
Features
All In One Solar Garden Light
LED solar street light is an integrated of solar panel,LED light,lithium battery,controller and lighting housing，Daytime solar panel turn sunlight into electricity，with intelligent controlled technology store energy the daylight.During the night when the brightness decrease,solar panel working voltage less than 4V,the sensor will work automatically controller by intelligent induction module.lithium battery turn the electricity to light.Lithium battery discharge to the dawn of illumination increased, the solar panel working voltage is more than 4V, the charge and discharge controller action, lithium battery discharge.
- Aluminum alloy case,patent products
- Professional light distribution for wide lighting,can change high capacity battery
- 360° view angle
- Over 3 nights lighting after full charge
- Elegant integrated Design，easy to install and maintace,Auto on/off
- With remote control，UVA technology，bring high corrosion resistance，30m remote control operation，increase/decrease the brightness

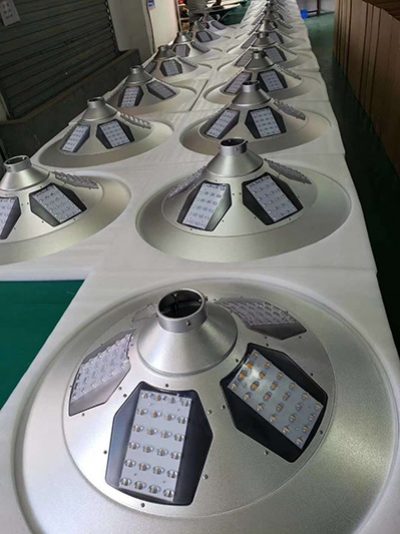

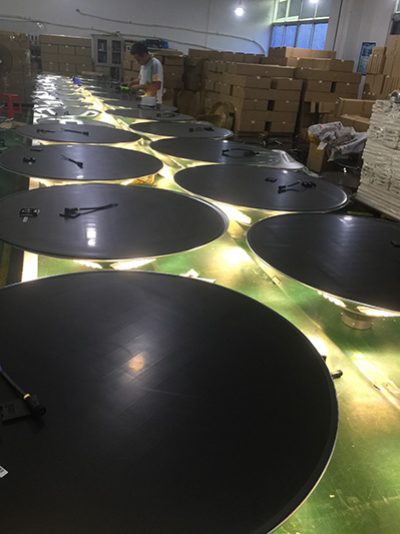

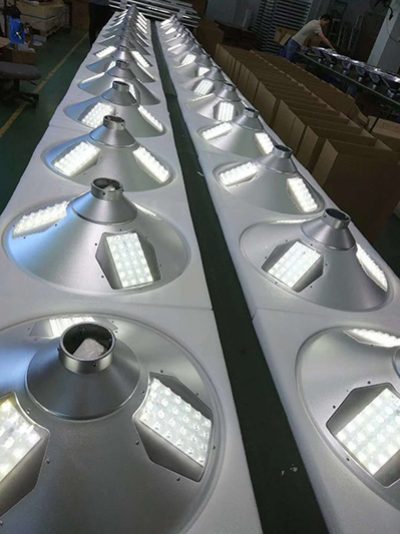

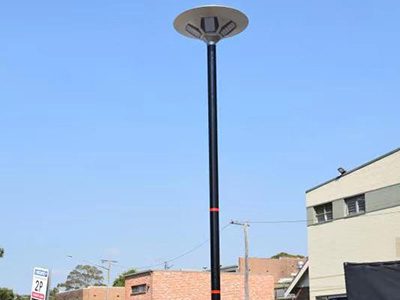

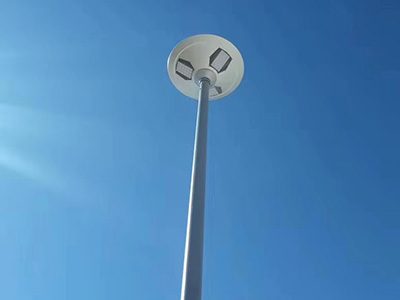

Product pictures
Specification and Dimension
| specifications | |||
| Power | 20w | 30w | 50w |
| 3030 LED chip | 3PCS LED Lamp/24PCS per LED | 3 LED Lamp/24PCS per LED | 5 LED Lamp/24PCS per LED |
| Luminous Flux | 135LM/W | ||
| LiFePO4 Battery | 153.6WH 12.8V | 230.4WH 12.8V | 307.2WH 12.8V |
| Solar Panel | 18V30W | 18V40W | 18V50W |
| Install height | 3-4M | 3-5M | 4-6M |
| Product Size(mm) | 570*570*230 | 660*660*240 | 760*760*250 |
| Solar charging time | 5-7 Cloudy/Rainy days | ||
| Material | High Class Aluminum | ||
| Work temperature | -25℃ to 65℃ | ||
| Colour Temp | 6000K ~6500K（3000K-7000K can customize） | ||
| Cloudy/Rainy days | 12 Cloudy/Rainy days | ||
| Warranty | 3 Years | ||
| Remote Control | Yes（1pc remote control per lot） | ||

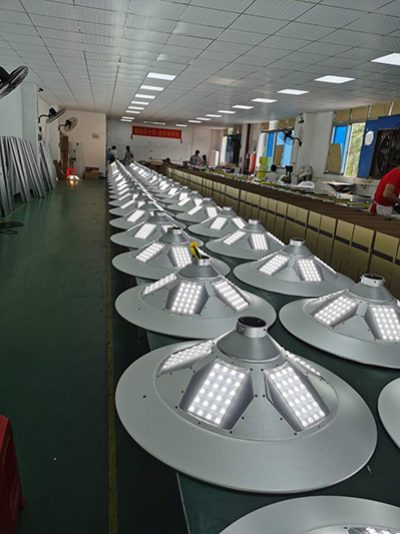

Production Diagram
Advantage
- 3030/5050 High efficiency LED Chip, 135LM/W,Aluminium;
- Elegant Integrated Design,High Class Aluminum material;
- Degree adjustable bracket, suitable for various roads
- The maximum wattage can reach 120 watts, specially designed for engineering
- Night sensor + Microwave motion sensor+Remote Control
