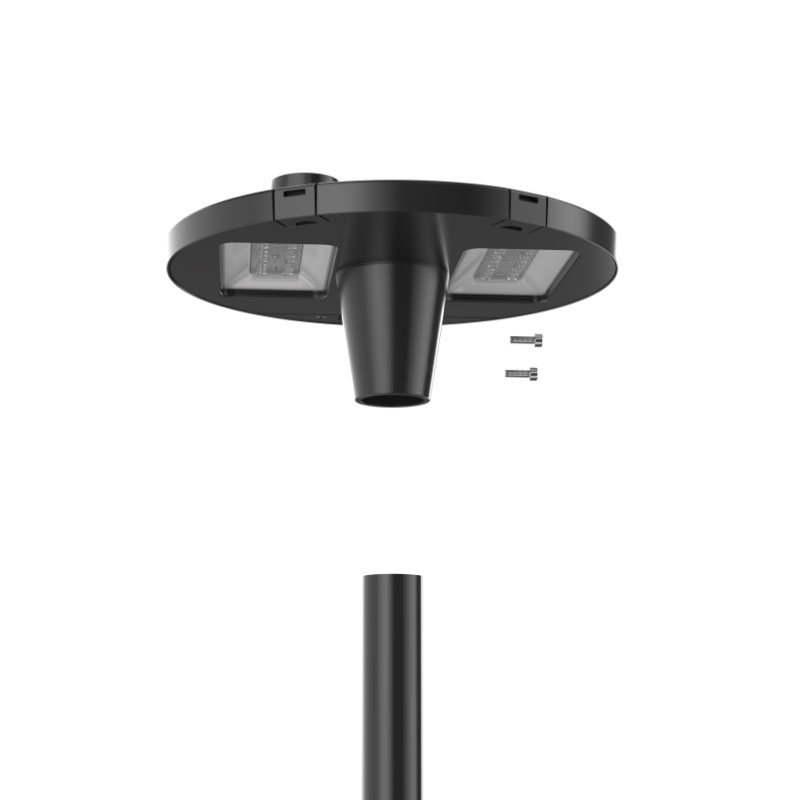

80w Led Garden Light Fittings led street light housing

Model No:EK-GLH-02
Match Power:40W/60W/80W
Contain Accessories:Aluminum Housing,Toughened Glass, Assembly Screws,Lamp Post pole,
Item: IP65 LED Street Lighting Housing
Power:  40W / 80W
Input Voltage:  AC220 - 240V, 50/60 HZ
Color Choose: Dark Gray, Light Gray, Black, Customized etc
Lifespan: ≥50000 Hours

Product Features

  1. Power size choose 40w 50w 60w 80w
  2. IP65 waterproof  · IK08 Anti-fall
  3. High quality accessories 304 stainless steel screws fitting
  4. 500hours salt spray testing, suit use on seaside road way,
  5. High heat dissipation conductive
  6. Lamp post size: 60/76mm
  7. Surface treatments: sandy gray powder painting
  8. Surface Color: Dark gray, Light gray & Black or customize

Product Specification

LED Garden Lights outdoor 60w 80w

  1. Made of ADC12 aluminum Die-casting,
  2. IP65 waterproof ADC12 Aluminum case,
  3. surface treated by Spray-painting to Prevent Corrosion and color Persistence,
  4. High heat dissipation conductive
  5. Corrosion resistant polyester powder paint 2.0mil thickness,
  6. Standard colors : Dark gray, Light gray & Black any special can be customized,

Whole Series & Specification

Model CodeHousing Size(Mm)Match PowerLamp Post  (Mm)  Weight   (Kg)Accessories
EK-GLH02Type AΦ460*45350W-80W 765.7Aluminum body,armoured glass, Waterproof Rubber Ring,304 s/s screws,
EK-GLH02Type BΦ460*51550W-80W 765.4
EK-GLH02Type BΦ460*19450W-80W604.8
Legend: Std = IP65 IK08
Housing Material  :Die-cast  Aluminum  +  Armoured Glass
Work temperature -35℃~50℃ 20%~90% H.R

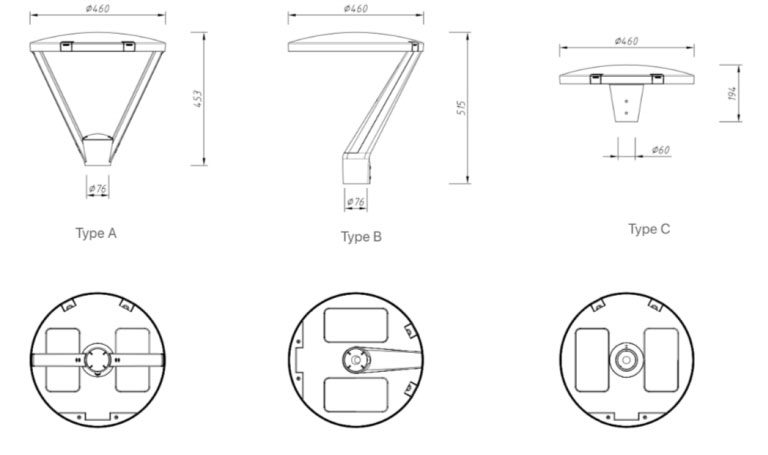

Products Drawing

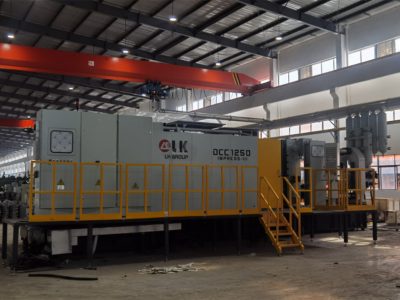

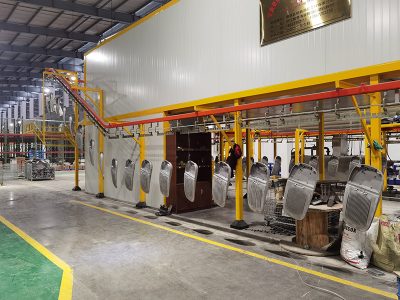

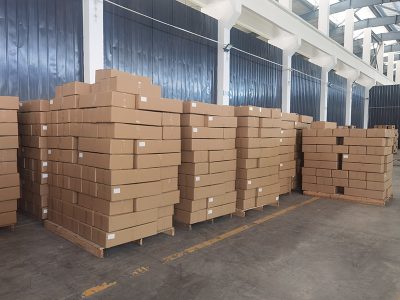

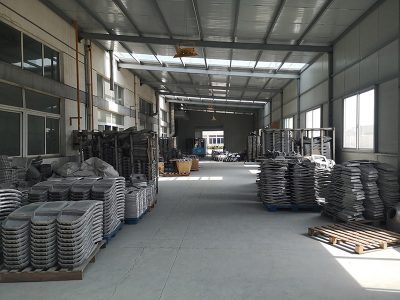

Factory Show

Shenzhen EKI lighting industrial co.,Limited is a professional die casting led strete light housing ,led road lighting housing manufacture, Main focus on development marketing die cast led street light housing,led light housing,led garden light,led flood light housing ,led high bay light.
